Multichannel Surround
- DTS HD Master, DTS:X, DTS:X Pro Yes, Yes, No
- DTS Neo:X, DTS Neural:X No, Yes
- DTS Virtual:X Yes
- Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Atmos Music Yes, Yes, Yes, Yes
- Dolby ProLogic Ilz, Dolby Surround No, Yes
- Multichannel Stereo Yes
- Max. Number of Processing (Pre-Amp) Channels 7.1
Sound Enhancements
- Discrete Power Amplifier Yes
- Pure Direct Yes
- Audyssey MultEQ XT
- Audyssey Dynamic EQ, Dynamic Volume Yes, Yes
- Compressed Audio Restorer Yes
Network
- Media Server Yes
- HEOS Wireless Multi-Room Technology Yes
- Alexa / Google Voice Assistant / Apple HomePod Yes, Yes, Yes
- Lossy Formats: MP3, WMA, AAC Yes, Yes, Yes
- Lossless Formats: FLAC, ALAC, WAV Yes, Yes, Yes
- Lossless Formats: FLAC HD, WAV, ALAC (all 192kHz/24 bit) Yes, Yes, Yes
- DSD Audio Streaming Yes (2.8/5.6MHz)
- AirPlay 2 Yes
- TuneIn Yes
- Spotify Connect Yes
- Roon Tested Yes
- HEOS App Control Yes
- Compatible with Remote APP for Smart Phones Denon 2016 AVR Remote
- Ethernet Ports Yes
- Wi-Fi Yes
- Bluetooth Yes
HDMI
- HDMI Inputs: Back, Front 6, No
- HDCP2.3 support Yes
- HDMI Outputs: Main, Zone 2, No
- HDMI 2.1: 8K/60Hz AB, 4K/120Hz AB Yes, Yes
- HDR, HLG, Dolby Vision, HDR10+, Dynamic HDR Yes , Yes, Yes, Yes, Yes
- ALLM (Auto Low Latency Mode) Pass-through for gaming Yes
- Variable Refresh Rate, Quick Flame Transport, Quick Media Switching Yes, Yes, No
- 3D Signal Pass-through Yes
- 8K Signal Pass-Through, Scaling, GUI Overlay Yes, Yes, Yes
- Audio Return Channel (ARC), Enhanced ARC Yes, Yes
- Auto LipSync Yes
Multi-room / CI
- Multi-Room Zones 2
- Zone Audio Source: HDMI; Optical, Coax, Network, USB; Analog Yes (2ch), Yes (2ch), Yes, Yes
- Zone Audio Output: Speaker, Pre-Out Yes, Yes
- IP Control, RS232 Control, Web Control, App Control Yes, Yes /Yes, Yes
- Remote In / Out Yes, Yes
- HDMI Diagnostics Yes
Others
- Auto Speaker Setup by Microphone Audyssey MultEQ XT
- Front Display 1-Line FLD
- GUI Languages 3
- Setup Assistent Yes
- Quick Select Plus, Quick Select Yes, No
- Variable Crossover Yes
- Optimized Bass Redirection Yes
- ECO Mode Yes
- Auto Power Off Yes
- Sleep Timer Yes

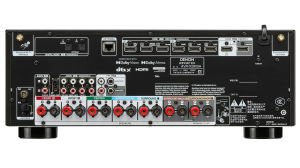

Inputs/Outputs
- HDMI In, Out 6, 2
- Multi-Room Video Out: Video, HDMI No, No
- Analogue In, Out 4 / No
- Phono (MM) In Yes
- Digital In: Optical, Coaxial 2 / 0
- Multi-Room Out: Analog, Digital 1 / No
- Multichannel Pre-Out Yes (0.2)
- Subwoofer Out 2
- Speaker Terminal: Gold-Plated Screw, Regular Screw No, Yes
- Number of Speaker Terminals 7
- Speaker A / B Assignable
- Bi-amp Drive Assignable
- Multi-Room Speaker Terminal Assignable
- Front Inputs: Audio, Composite, Digital (Opt), HDMI, USB No, No, No, No, Yes
- USB Audio, Made for iPod, Made for iPhone Yes, No, No
- AM/FM Tuner Yes
Specifications
- Number of Power Amps 7
- Power Output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive) 95W
- Power Output (6 ohm, 1kHz, 0.7% 2ch Drive) 125W
- Power Output (6 ohm, 1 kHz, 10% 1ch Drive) 150W
General
- System Remote Control RC-1253
- Pre-Programmed, Learnable, LCD Display No, No, No
- Power Consumption in W 500
- Power Consumption No-Sound (ECO On / Off) in W 35W/75W
- Standby Consumption in W 0.1
- CEC Standby Consumption in W 0.5
- Network Standby Consumption in W Less than 2.0
- Maximum Dimensions
Antenna:Horizontal:(W x D x H) in mm
( Antenna:Vertical :(W x D x H) in mm)
【 w/o Antenna :(W x D x H) in mm】 434 x 341 x 167
( 434 x 341 x 237 )
【 434 x 330 x 167 】 - Weight in kg 9.5
- Carton Weight (inc. product) in kg 11.5
